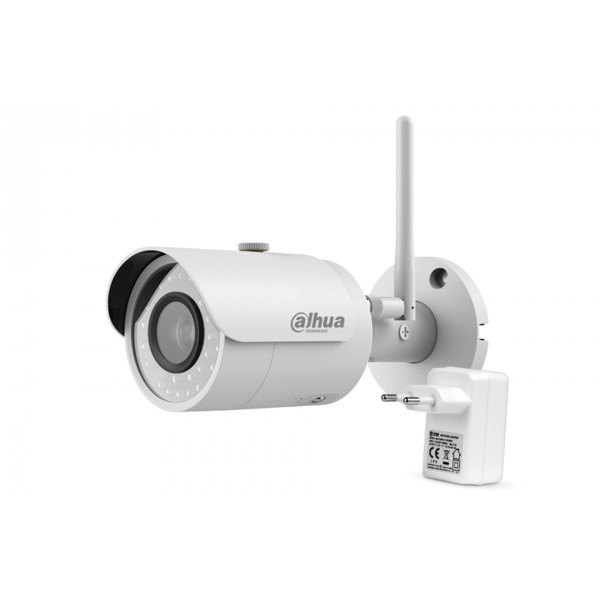

Wireless Security Camera 4MP 2,8mm WS2

Holiday & Order Processing Notice

We're on holiday from 11. July -  29. July. All orders and support enquiries received during this period will be processed & shipped-out in-order after returning from Holiday.

Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
Wireless Security Camera 4MP 2,8mm WS2
  • Stock: In Stock
  • Model: WS2

EU VAT regulation (since 1.7.2021)

As of 01.07.2021, in B2C distance selling (transactions with end consumers), the previously applicable VAT delivery thresholds in the EU will be abolished and tax amounts will be owed directly in the country of delivery.

The so-called "distance selling regulation" will then apply.

From this point on, cross-border deliveries of goods to non-businesses will be taxable in the destination member state, and the corresponding amount of VAT will be payable there.

This means, for example, that as of 1.7.21, 21% VAT will be shown on invoices for deliveries to Belgium, and 25% VAT will be shown on invoices for deliveries to Sweden. The recipient in Sweden therefore no longer benefits from the 22% VAT rate in Slovenia.

Shipments outside the EU

Shipments to outside the EU are 0% VAT and remain VAT-free. Customs or other import costs for the destination country may apply.

See Payment information for more details.

Shipping

See Delivery information for more details.

Excl. VAT: 95.00€



Features

  • 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
  • Outputs max. 4MP (2560 × 1440) @20 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Max. IR distance: 30 m
  • ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Supports 256 G Micro SD card
  • 12V DC power supply, easy for installation
  • IP67 protection
  • Supports Wi-Fi





















Camera

Image Sensor

1/3”4Megapixel progressive CMOS

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

Manual 1/30 s
0.9343 Lux @F2.0 (Color, 80 IRE); 0.9258 Lux @F2.0 (W/B, 80 IRE); 0 Lux (IR on)
Manual 1/3 s
0.1195 Lux @F2.0 (Color, 80 IRE); 0.1190 Lux @F2.0 (W/B, 80 IRE); 0 Lux (IR on)

S/N Ratio

>52 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto

Illuminator Number

18 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm:
Horizontal: 97°
Vertical: 52°
Diagonal: 116°
3.6 mm:
Horizontal: 76°
Vertical: 42°
Diagonal: 90°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.8 m (2.6 ft)
3.6 mm: 1.4 m (4.6 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.7 ft)

5.6 m

(18.4 ft)

3.6mm

80 m

(262.5 ft)

30m

(105.0 ft)

16m

(52.5 ft)

8m

(26.2 ft)

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

Smart Codec

H.264: Yes
H.265: Yes

Video Frame Rate

50 Hz
Main stream (2560 × 1440 @20 fps), sub stream (640 × 480 @20 fps)
Main stream (2304 × 1296 @25 fps), sub stream (640 × 480 @25 fps)
60 Hz
Main stream (2560 × 1440 @20 fps), sub stream (640 × 480 @20 fps)
Main stream (2304 × 1296 @30 fps), sub stream (640 × 480 @30 fps)

Stream Capability

2 streams

Resolution

4M (2560 × 1440); 2M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); VGA (640 × 480); QVGA (320 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 24 kbps–8192 kbps
H.265: 9 kbps–7424 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with all resolution)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering

Network

Network

RJ-45 (10/100 Base-T)

Wi-Fi

Yes

SDK and API

Yes

Protocol

HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; QoS; NTP

Interoperability

ONVIF (Profile T/Profile S/Profile G); CGI; DMSS

User/Host

20 (Total bandwidth: 40 M)

Storage

FTP; SFTP; Micro SD card (256 G); NAS

Browser

IE: IE9, IE11 and later
Chrome: 39.0.2171.95, and later version without plug-in (62.0.3202.94)
Firefox: 43.0.1 and later version without plug-in (69.0.3)

Management Software

DMSS

Mobile Phone

IOS; Android

Certification

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
FCC: 47 CFR FCC Part 15, Subpart B
FCC ID: FCC PART 15C

Power

Power Supply

12V DC

Power Consumption

Max 5.39W (12V DC) (IR full intensity)

Environment

Operating Conditions

–30°C to +50°C (–22°F to +122°F)/Less than 95%RH

Storage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

164.9 mm × 70 mm × 125.2 mm (6.5" × 2.8" × 4.9") (L × W × H)

Net Weight

431 g (1.0 lb)

Gross Weight

708 g (1.6 lb)
